Product Summary
The S29GL128P10TFI010 is a Mirrorbit® Flash product fabricated on 90 nm process technology. It offers a fast page access time of 25 ns with a corresponding random access time as fast as 90 ns. They feature a Write Buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes these devices ideal for today’s embedded applications that require higher density, better performance and lower power consumption.
Parametrics
Absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65°C to +150°C; (2)Ambient Temperature with Power Applied: -65°C to +125°C; (3)Voltage with Respect to Ground: All Inputs and I/Os except as noted below: -0.5 V to VCC + 0.5 V, VCC: -0.5 V to +4.0 V, VIO: -0.5V to +4.0V, A9 and ACC: -0.5 V to +12.5 V; (4)Output Short Circuit Current: 200 mA.
Features
Features: (1)Single 3V read/program/erase (2.7-3.6 V); (2)Enhanced VersatileI/O?control; (3)90 nm MirrorBit process technology; (4)8-word/16-byte page read buffer; (5)32-word/64-byte write buffer reduces overall programming time for multiple-word updates; (6)Secured Silicon Sector region; (7)Uniform 64Kword/128KByte Sector Architecture; (8)100,000 erase cycles per sector typical; (9)20-year data retention typical; (10)Offered Packages: 56-pin TSOP, 64-ball Fortified BGA; (11)Suspend and Resume commands for Program and Erase operations; (12)Write operation status bits indicate program and erase operation completion; (13)Unlock Bypass Program command to reduce programming time; (14)Support for CFI (Common Flash Interface); (15)Persistent and Password methods of Advanced Sector Protection.

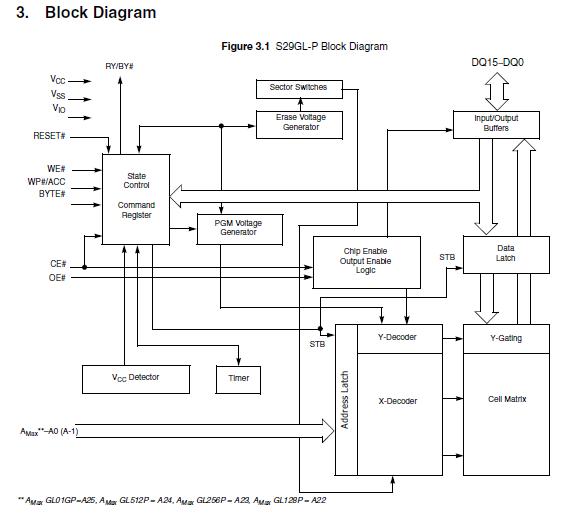

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S29GL128P10TFI010 |
Spansion |
Flash 3V 128Mb Mirrorbit highest address110ns |
Data Sheet |
|
|
||||||||||||
