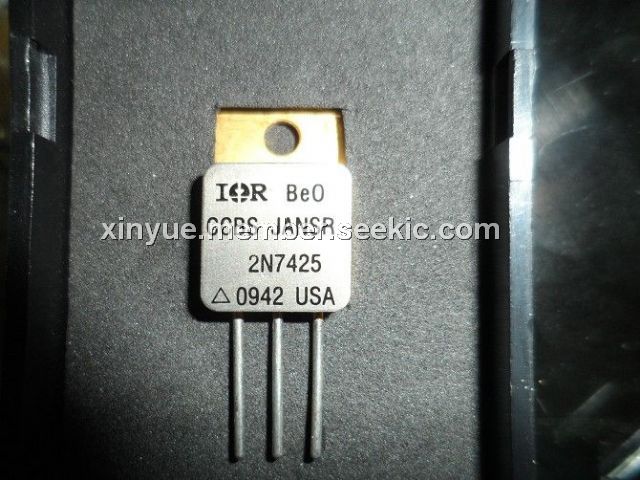

Product Summary

The 2N7425 is a power mosfet. The 2N7425 has been characterized for both Total Dose and Single Event Effects (SEE). The combination of low Rdson and low gate charge reduces the power losses in switching applications such as DC to DC converters and motor control. The 2N7425 retains all of the well established advantages of MOSFETs such as voltage control, fast switching, ease of paralleling and temperature stability of electrical parameters.

Parametrics

2N7425 absolute maximum ratings: (1) Continuous Drain Current : -22A; (2) Max. Power Dissipation : 150W; (3) Linear Derating Factor : 1.2W/℃; (4) Gate-to-Source Voltage : ±20V; (5) Single Pulse Avalanche Energy : 500mJ; (6) Avalanche Current : -22A; (7) Repetitive Avalanche Energy : 15mJ; (8) Peak Diode Recovery dv/dt : -23V/ns; (8) Operating Junction : -55 to +150℃; (9)Weight : 9.3(typical)g.

Features

2N7425 features: (1)Single Event Effect (SEE) Hardened; (2)Low RDS(on); (3)Low Total Gate Charge; (4)Proton Tolerant; (5)Simple Drive Requirements; (6)Ease of Paralleling; (7)Hermetically Sealed; (8)Surface Mount; (9)Ceramic Package; (10)Light Weight.

Diagrams

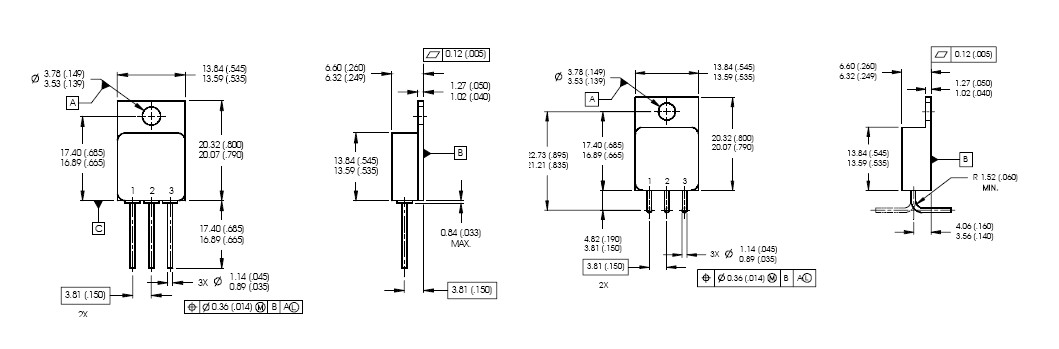

2N7425 dimension
