Product Summary
The MTD2009J is a stepping motor driver IC.
Parametrics
Absolute maximum ratings: (1)output voltage: 60 V; (2)output current: 1.5 A; (3)logic supply voltage: 0 to 7 V; (4)logic input voltage: 0 to Vcc; (5)total power dissipation: 5 W; (6)junction temperature: 150 ℃; (7)storage temperature: -40 to 150 ℃.
Features
Features: (1)constant-current chopping function (offtime fixed, self-oscillation); (2)4-phase input (with inhibit for simulataneously turn ON); (3)an ENABLE function is provided; (4)protection for penetration current; (5)built-in overheating protection (Alarm+shutdown).

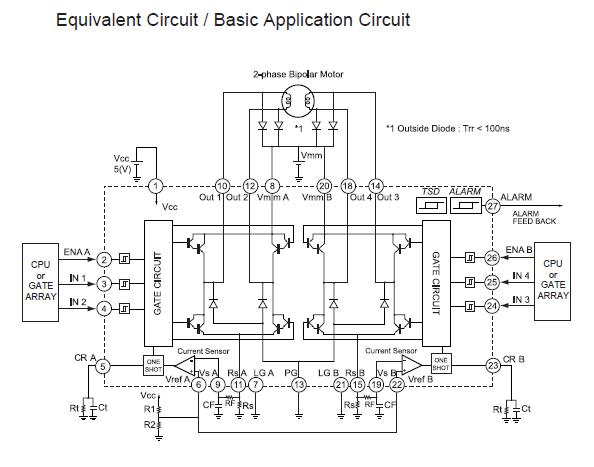

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MTD2009J |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers Power IC |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2009J-3072 |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers V=35 IO=1.2 PT=2.8 |
Data Sheet |
|
|
||||||||
|
MTD2009J-7072 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
|
|
||||||||
|
MTD2009J-7102 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2009J-4102 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2009J-4072 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
Negotiable |
|
||||||||
