Product Summary
The LM3525M-H provides Universal Serial Bus standard power switch and over-current protection for all host port applications. The single port device is ideal for Notebook PC and Handheld PC applications that supply power to one port. A 1 ms delay on fault flag output prevents erroneous overcurrent reporting caused by inrush currents during the hotplug events. The LM3525M-H accepts an input voltage between 2.7V and 5.5V allowing use as a device-based inrush current limiter for 3.3V USB peripherals, as well as Root and Self-Powered Hubs at 5.5V. The Enable input accepts both 3.3V and 5.0V logic thresholds.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: -0.3V to 6.0V; (2)Output Voltage: -0.3V to 6.0V; (3)Voltage at All Other Pins: -0.3V to 5.5V; (4)Power Dissipation (TA = 25℃): 700 mW; (5)TJMAX: 150℃.
Features
Features: (1)Compatible with USB1.1 and USB 2.0; (2)1 ms Fault Flag Delay During Hot-Plug Events; (3)Smooth Turn-OEliminates Inrush Induced Voltage Drop; (4)UL Recognized Component: REF # 205202; (5)1A Nominal Short Circuit Output Current Protects Notebook PC Power Supplies; (6)Thermal ShutdowProtects Device iDirect Short Condition; (7)500mA Minimum Continuous Load Current; (8)Small SO-8 Package Minimizes Board Space; (9)2.7V to 5.5V Input Voltage Range; (10)Switch Resistance ≤ 120 mΩ Max. at VIN = 5V; (11)1μA Max Standby Current; (12)100 μA Max Operating Current; (13)Undervoltage Lockout (UVLO).

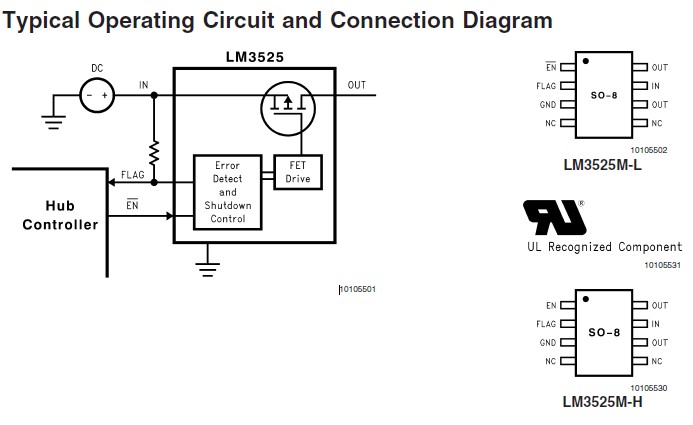

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM3525M-H |
National Semiconductor (TI) |
Board Mount Temperature Sensors |
Data Sheet |
|
|
||||||||||||
 |
LM3525M-H/NOPB |
National Semiconductor (TI) |
Power Switch ICs - USB SGL PORT USB PWR SWITCH |
Data Sheet |
|
|
||||||||||||
