Product Summary
The TWL2214CAPFBR device is a single-chip battery and power management solution for wireless handsets, pagers, personal digital assistants (PDAs), and other battery-powered devices. For battery charging, the device incorporates a linear charger for single-cell Li-Ion and lithium polymer battery packs. Prior to charging, the TWL2214CAPFBR device initiates battery pack wake-up and damaged cell detect functions. For deeply discharged batteries, the device performs precharge conditioning by trickle charge to a user-defined current setting.
Parametrics
Absolute maximum ratings: (1)VCHG to GND: –0.3 V to 12 V; (2)All other terminals relative to GND: –0.3 V to 6.5 V; (3)Operating ambient temperature: –40℃ to 85℃; (4)Operating junction temperature range, TJ: –25℃ to 150℃; (5)Storage temperature range, TSTG: –55℃ to 150℃; (6)Soldering temperature (for 10 seconds): 260℃.
Features
Features: (1)Integrated, Single-Chip Solution for Battery Charge Control and Power Supply Management; (2)Linear Charger for Single-Cell Li-Ion or Li-Polymer Packs; (3)Integrated Control over Precharge, Constant-Current, and Constant-Voltage Charging Phases; (4)Programmable Charge Termination by Minimum Current and Time; (5)Battery Temperature Sensing; (6)Pack Wake-Up and Damaged Cell Detect Functions; (7)Safety Charge Timers During Precharge and Constant-Current Charging Programmable Charging Current; (8)Six Programmable Low-Dropout Linear Voltage Regulators; (9)Over 65-dB Power Supply Rejection Ratio (PSRR) From 10 Hz to 10 kHz; (10)System Over- and Under-Voltage Shutdown; (11)Power On/Off and Reset Control Logic; (12)Three Individually Selectable LED Backlight Drivers; (13)Vibrator and Ringer Drivers; (14)Internal 8-Bit Analog-to-Digital Converter With Auxiliary Inputs; (15)I2C Control Interface and Three-Wire SPI Interface; (16)48-Terminal Plastic TQFP (PFB) or MicroStar Junior BGA. (GQE) Package.

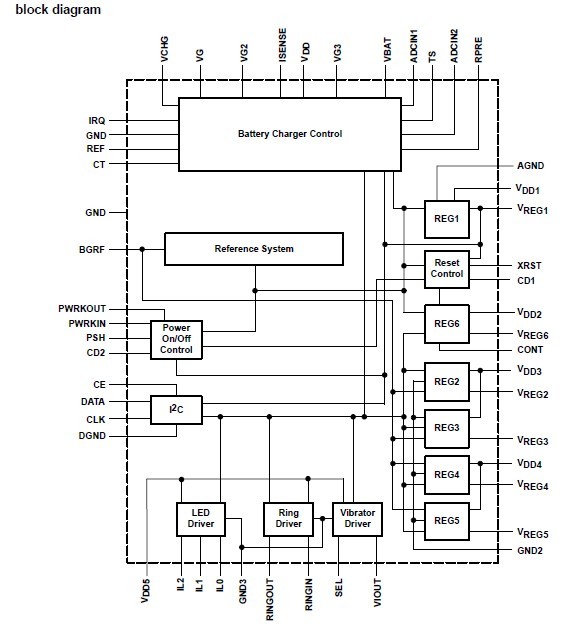

Diagrams
 |
