MC34064D-5R2G

Product Summary

The MC34064D-5R2G is an undervoltage sensing circuit specifically designed for use as a reset controller in microprocessor-based systems. It offers the designer an economical solution for low voltage detection with a single external resistor. The MC34064D-5R2G features a trimmed-in-package bandgap reference, and a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation. The open collector reset output is capable of sinking in excess of 10 mA, and operation is guaranteed down to 1.0 V input with low standby current. The applications of MC34064D-5R2G include direct monitoring of the 5.0 V MPU/logic power supply used in appliance, automotive, consumer and industrial equipment.

Parametrics

Maximum ratings: (1)Power Input Supply Voltage, Vin: -1.0 to 10 V; (2)Reset Output Voltage, VO: 10 V; (3)Reset Output Sink Current, ISink: Internally Limited mA; (4)Clamp Diode Forward Current, Reset to Input Pin, IF: 100 mA; (5)P Suffix, Plastic Package: Maximum Power Dissipation @ TA = 25℃: PD=625mW; Thermal Resistance, Junction-to-Air: RθJA=200 ℃/W; (6)D Suffix, Plastic Package: Maximum Power Dissipation @ TA = 25℃: PD=625mW;Thermal Resistance, Junction-to-Air:RθJA=200 ℃/W; (7)DM Suffix, Plastic Package: Maximum Power Dissipation @ TA = 25℃: PD=520mW; Thermal Resistance, Junction-to-Air: RθJA=240 ℃/W; (8)Operating Junction Temperature, TJ: +150℃; (9)Operating Ambient Temperature, TA: 0 to +70℃; (10)Storage Temperature Range, Tstg: -65 to +150℃.

Features

Features: (1)Trimmed-In-Package Temperature Compensated Reference; (2)Comparator Threshold of 4.6 V at 25℃; (3)Precise Comparator Thresholds Guaranteed Over Temperature; (4)Comparator Hysteresis Prevents Erratic Reset; (5)Reset Output Capable of Sinking in Excess of 10 mA; (6)Internal Clamp Diode for Discharging Delay Capacitor; (7)Guaranteed Reset Operation with 1.0 V Input; (8)Low Standby Current; (9)Economical TO-92, TSOP-5, SOIC-8 and Micro8 Surface Mount Packages; (10)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (11)Pb-Free Packages are Available.

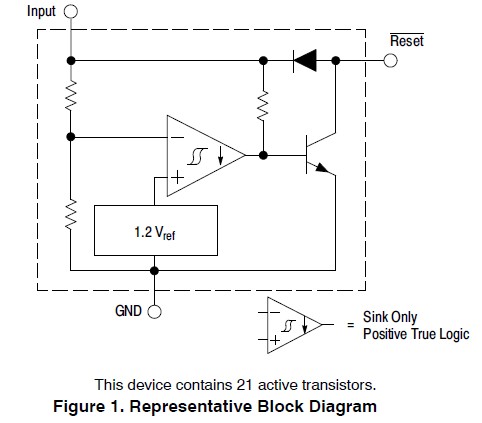

Diagrams
